Product Showcase

PCB Manufacturing Capabilities

A curated view of boards we manufacture across automotive, medical, telecom, memory, and high-power industrial applications.

Automotive Grade PCBs

IATF 16949 certified automotive-grade boards engineered for ADAS, EV powertrain, BMS, and in-vehicle control modules with high thermal and vibration tolerance.

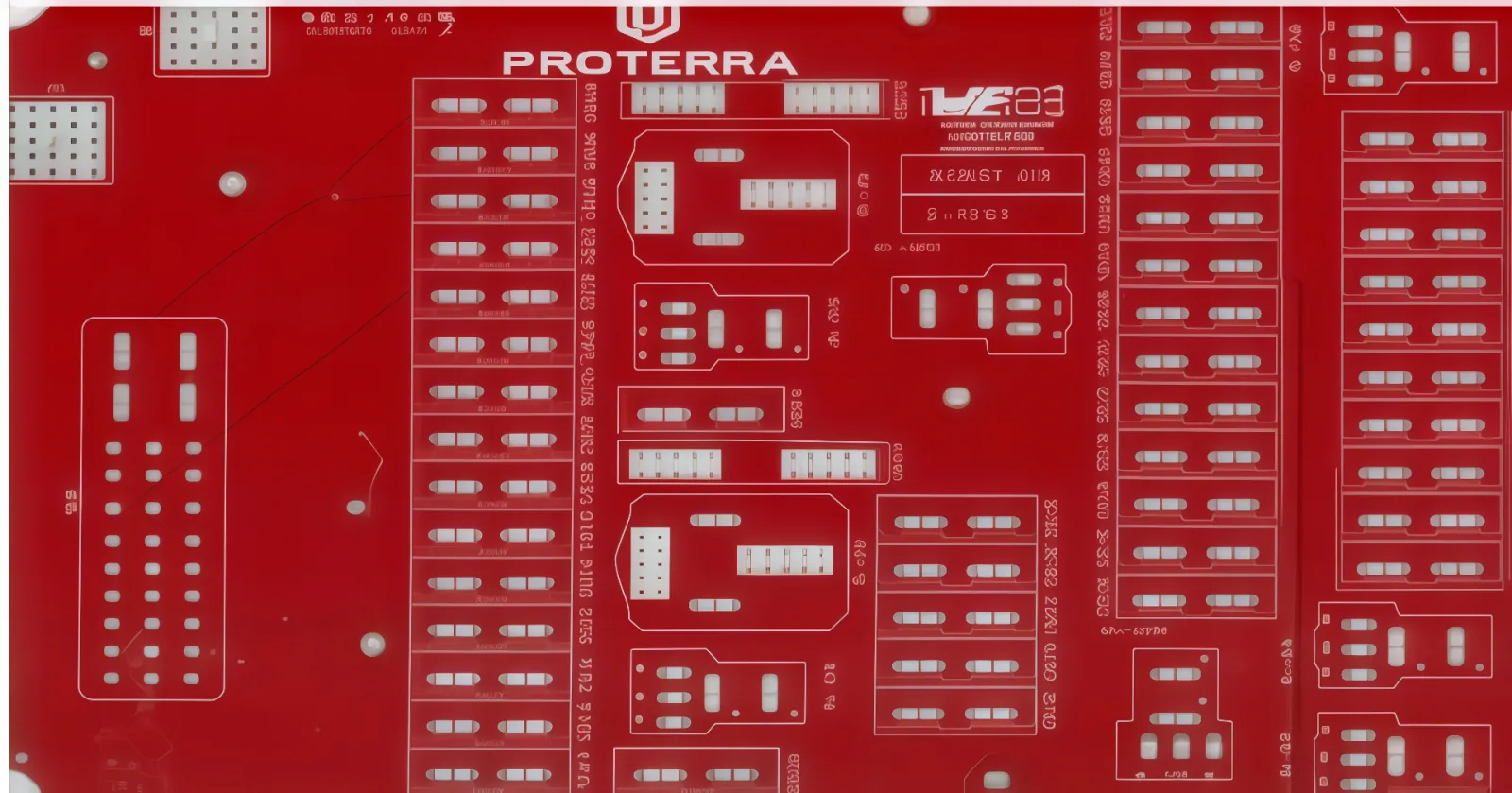

Automotive grade red soldermask PCB with high-density component footprints

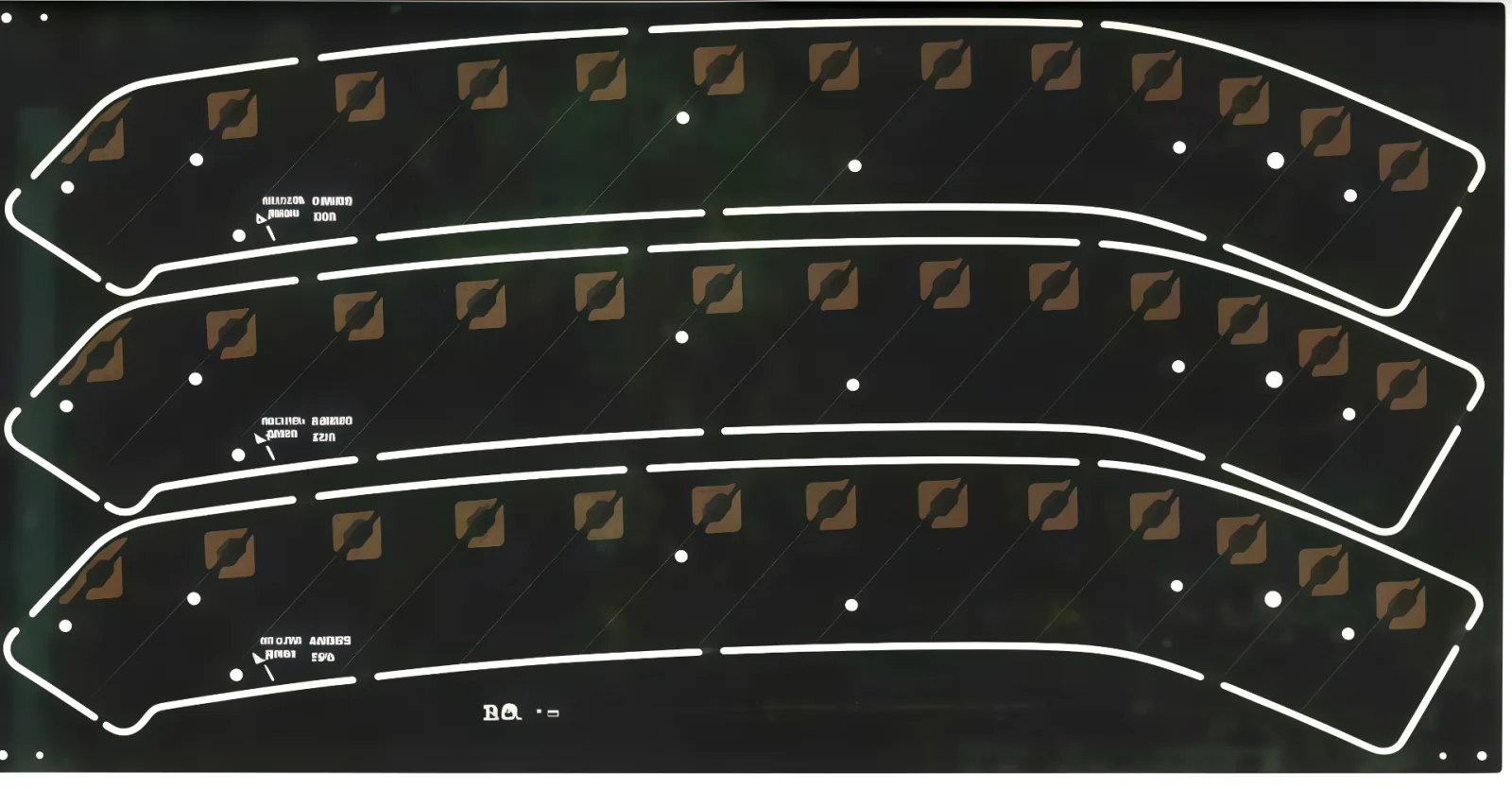

Curved automotive PCB panel with gold-plated contact pads

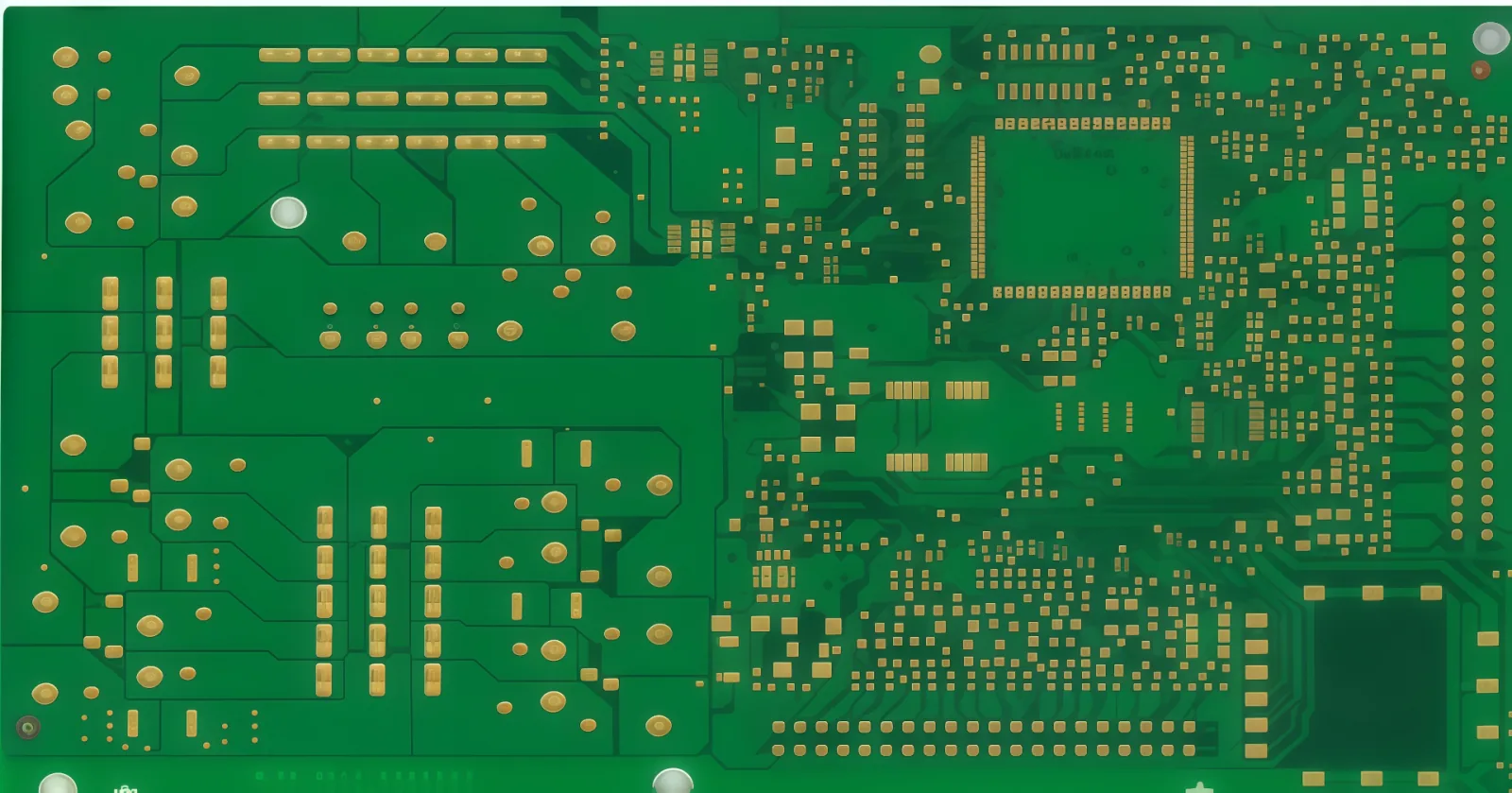

Automotive ECU PCB with dense gold-plated pads and fine-pitch routing

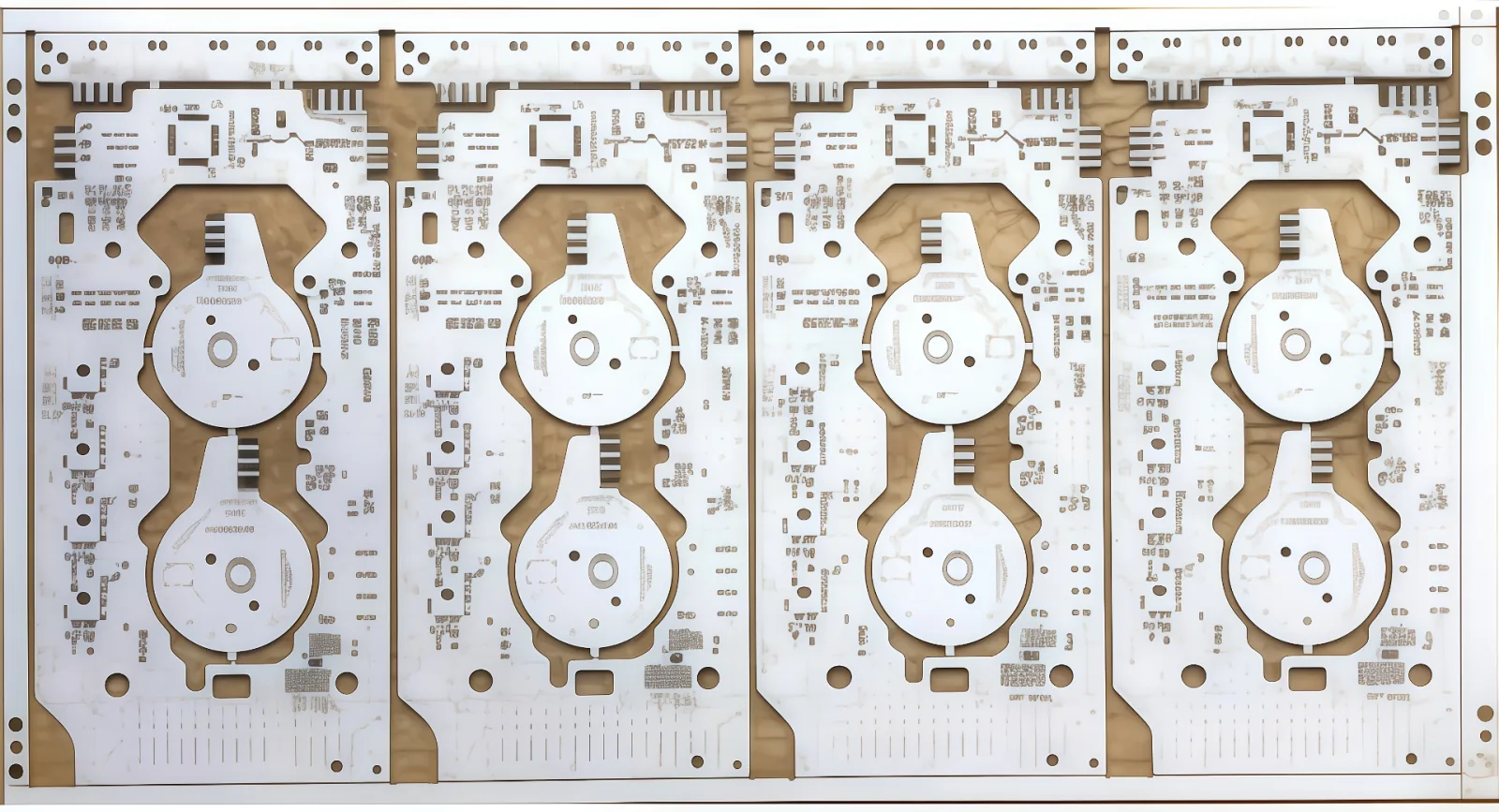

Automotive PCB panel with multi-up white soldermask sensor boards

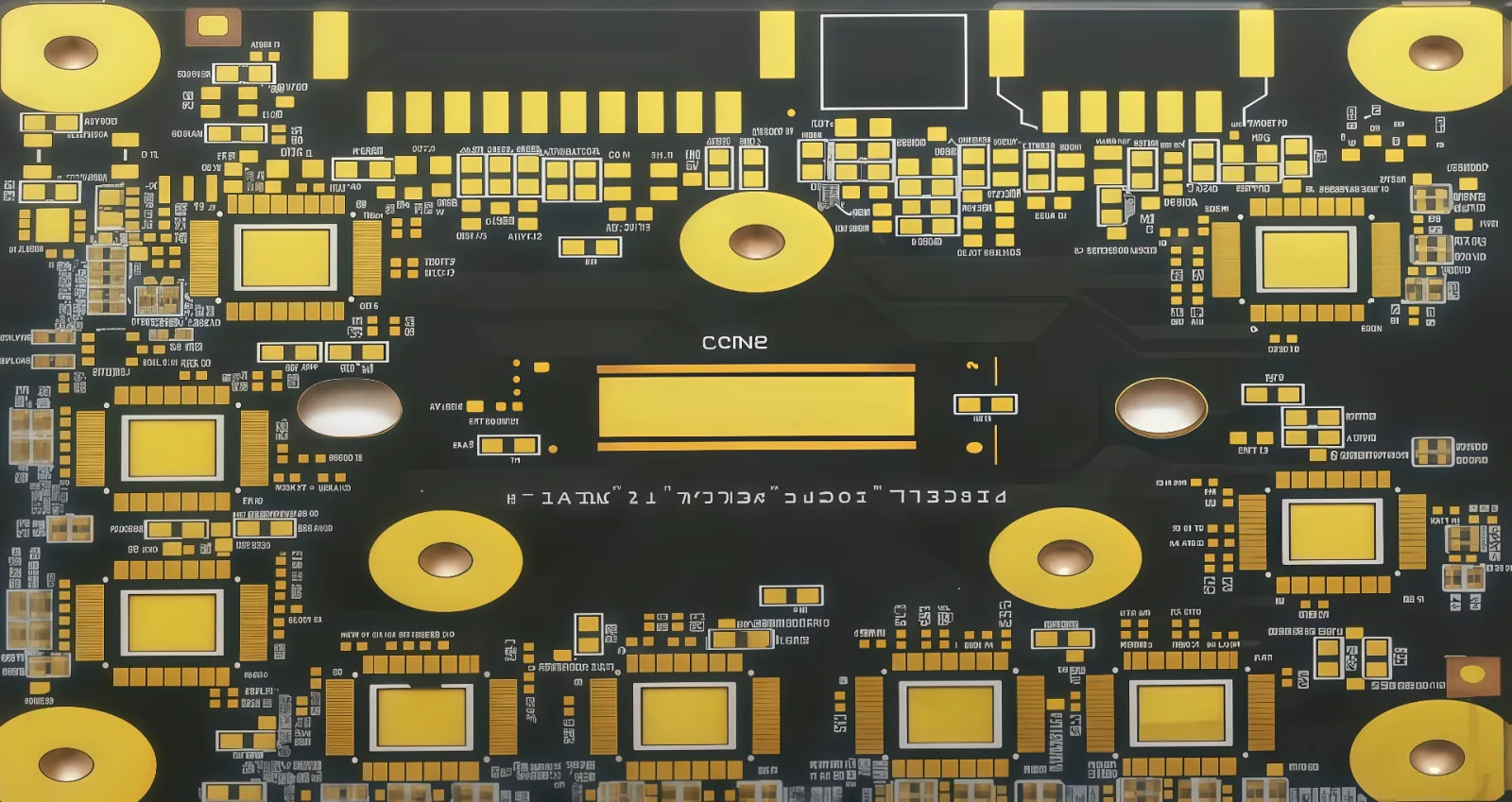

Black soldermask automotive PCB with gold-plated power pads and BGA footprints

Medical / Telecom / High-Frequency & Base Station PCBs

High-frequency Rogers and hybrid stack-ups for 5G base stations, RF modules, telecom infrastructure, and ISO 13485 medical devices.

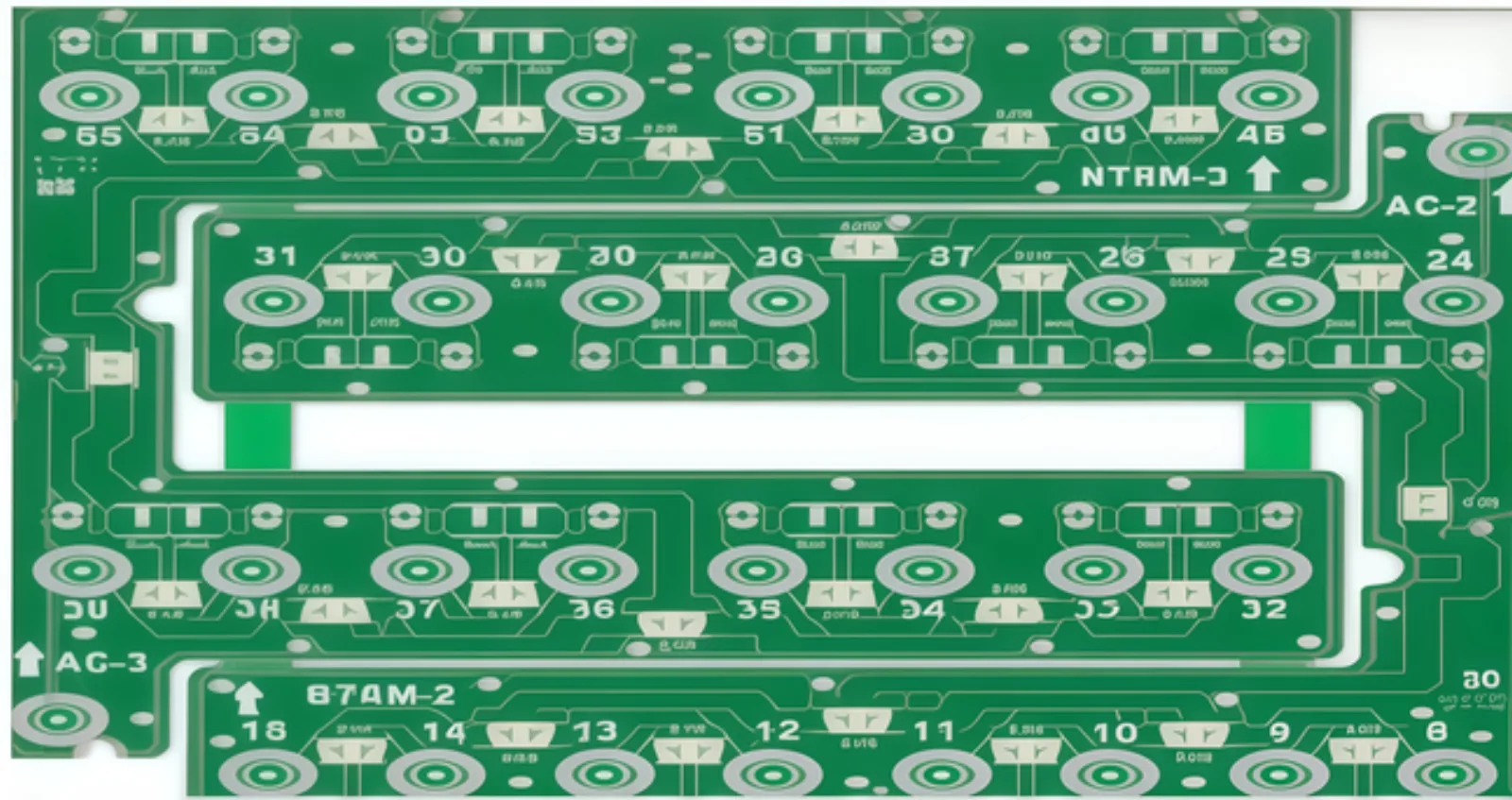

Telecom base station PCB panel with multi-up RF circuit boards

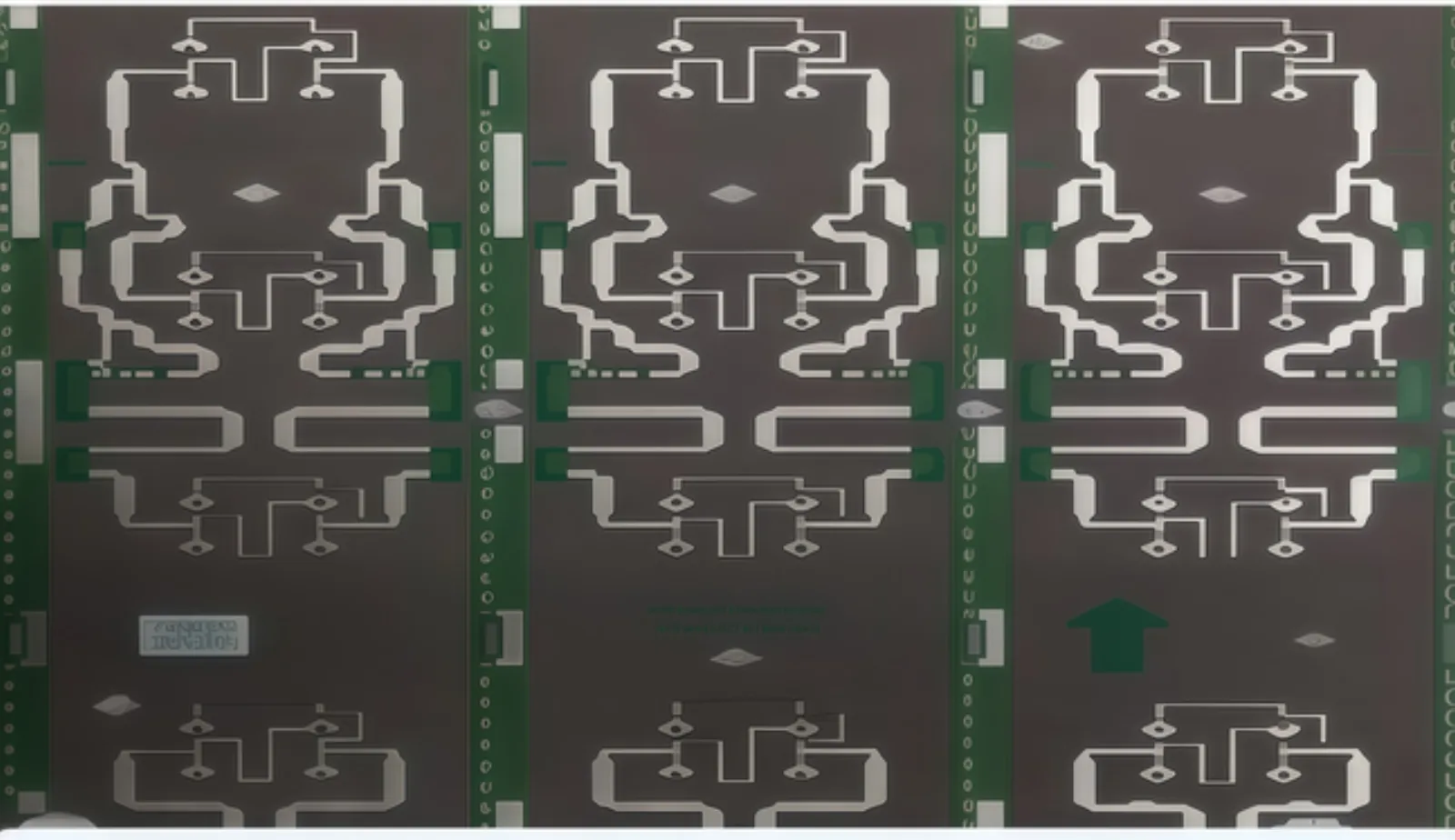

High-frequency RF PCB with symmetrical microstrip patterns on Rogers substrate

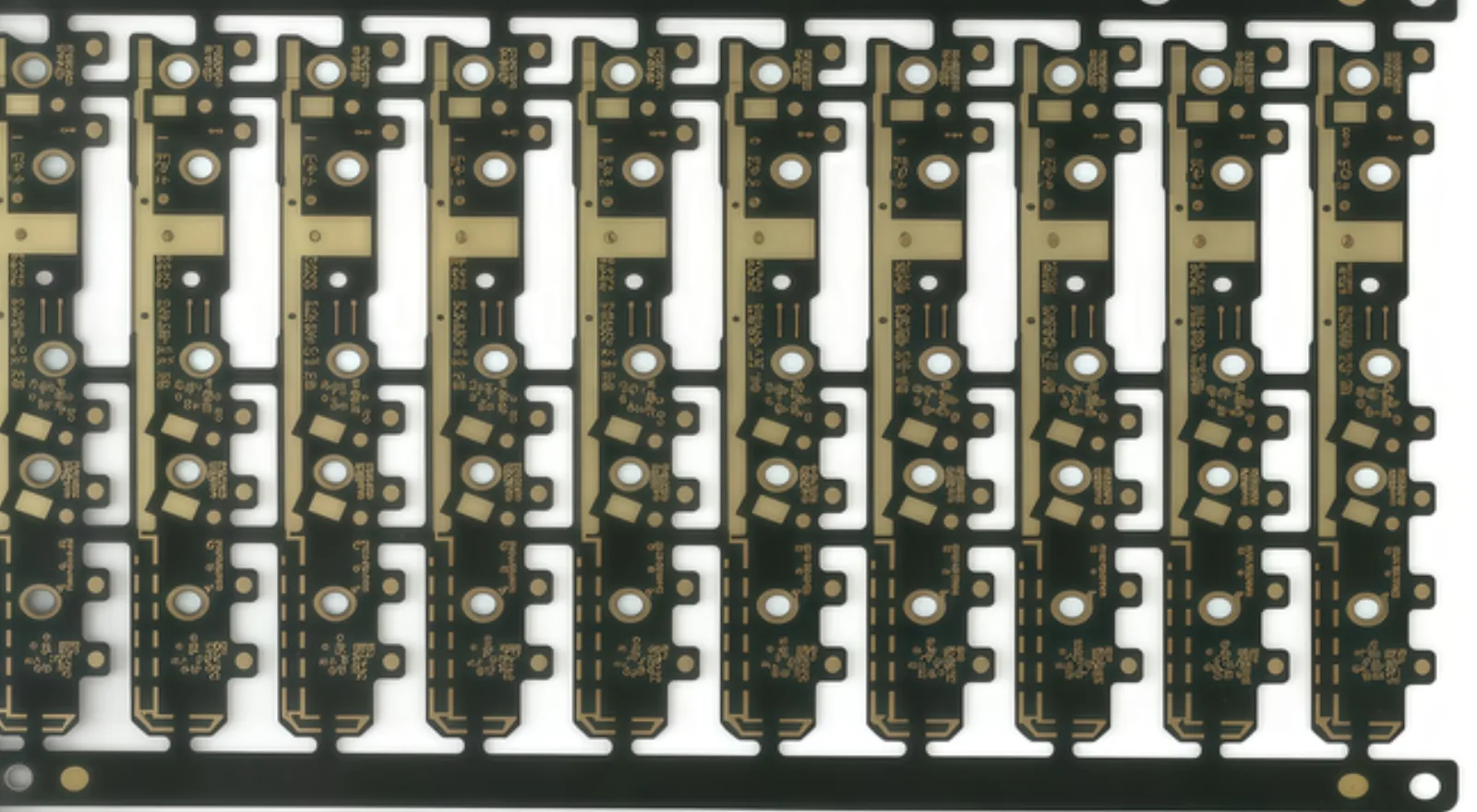

Black soldermask high-frequency PCB panel with gold-plated telecom modules

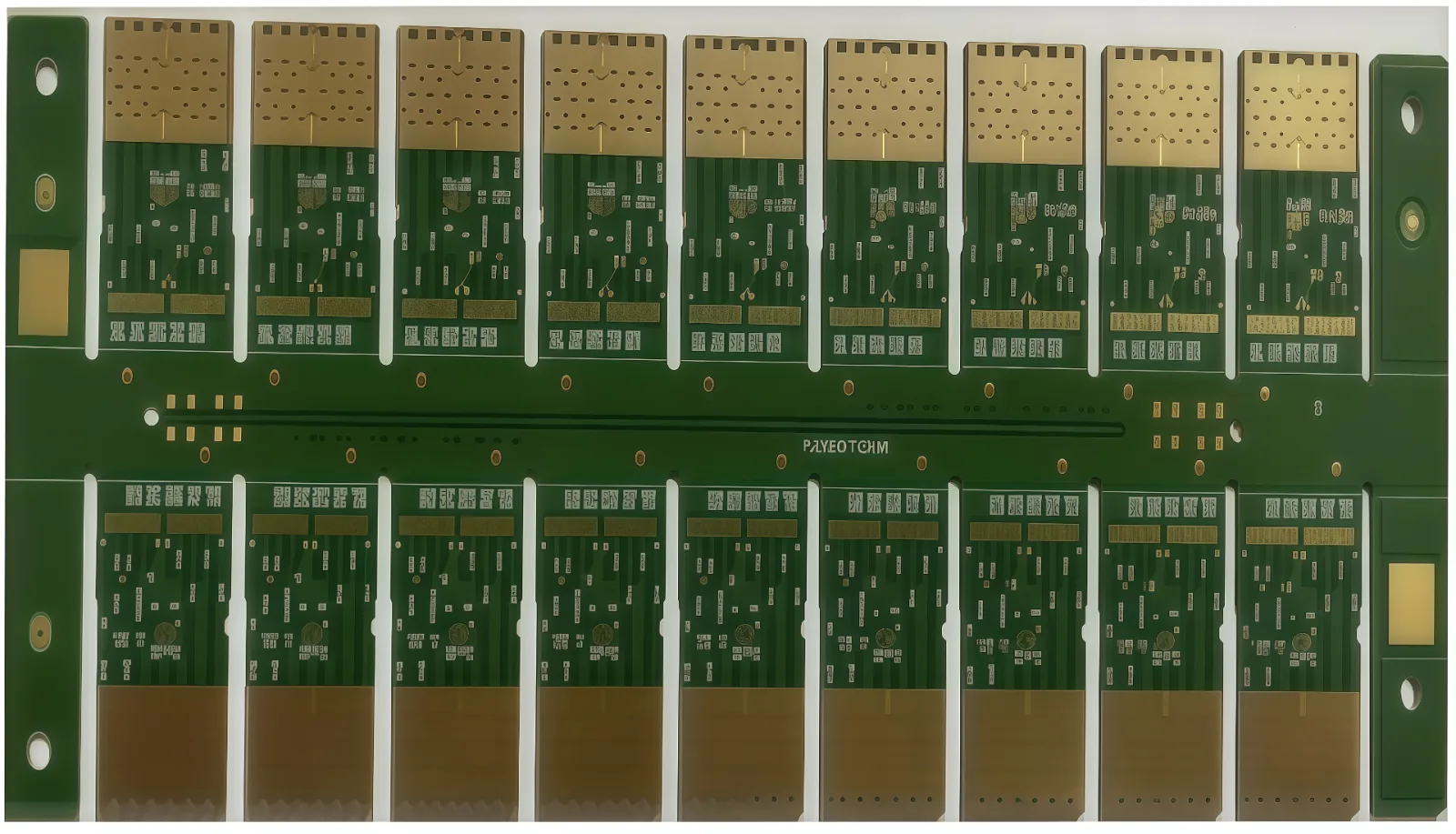

Telecom backplane PCB panel with gold-plated edge connectors and high-density routing

Gold Finger & Memory Module PCBs

Precision hard-gold plated edge connectors and memory module PCBs with controlled impedance for DDR, SSD, and high-speed interconnect applications.

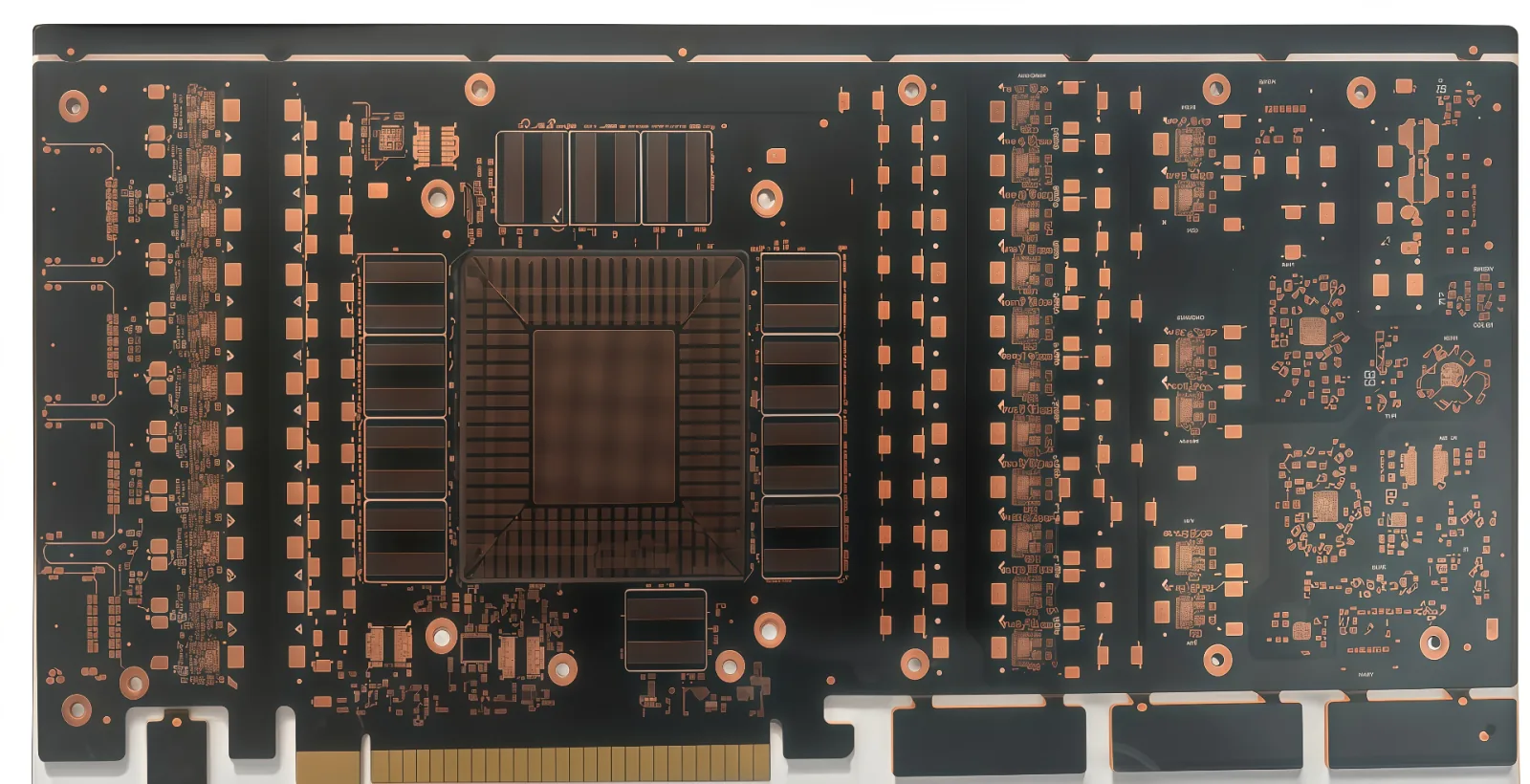

High-density GPU/server PCB with copper pads and central BGA cavity

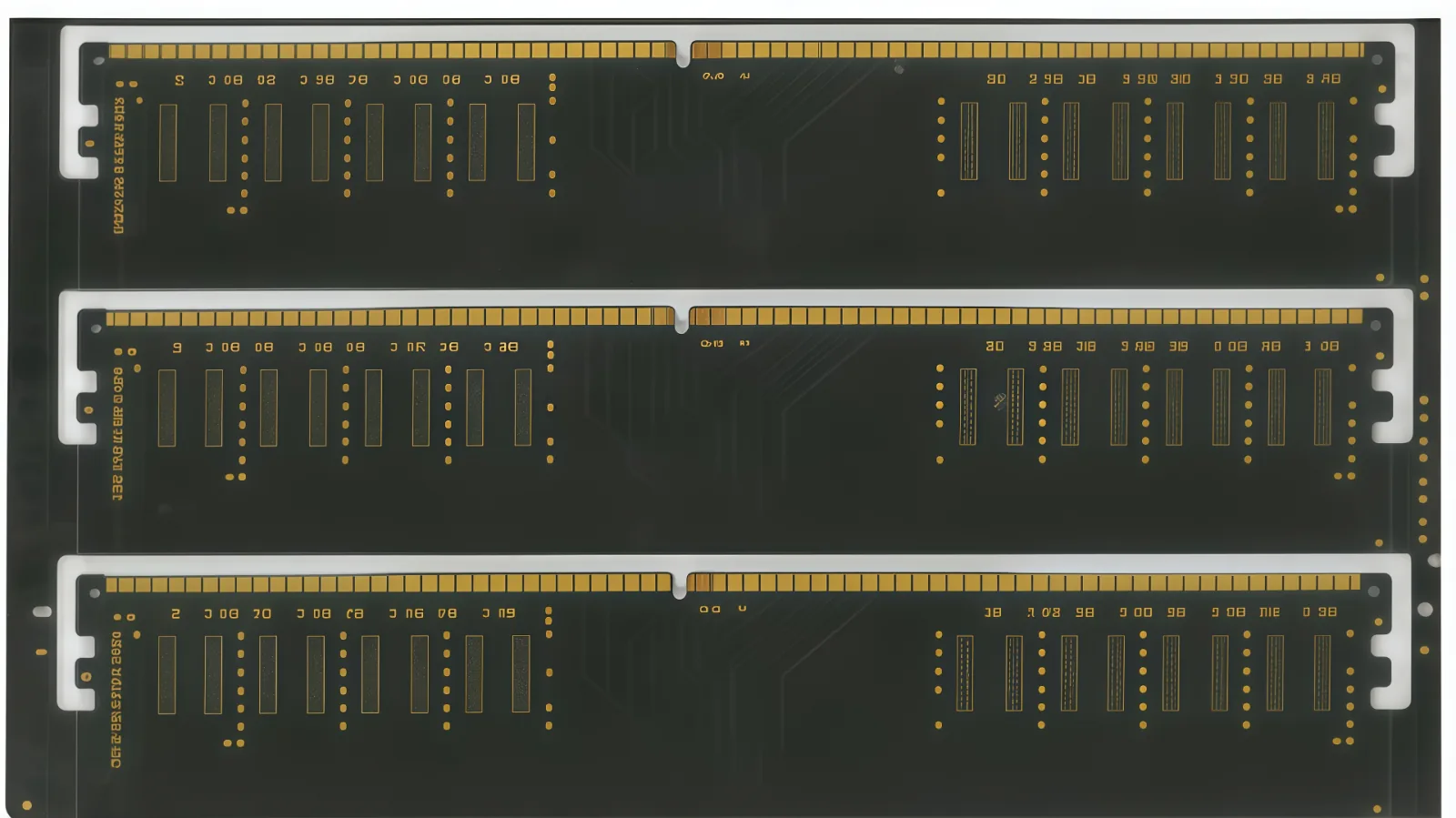

DDR memory module PCBs with gold-finger edge connectors

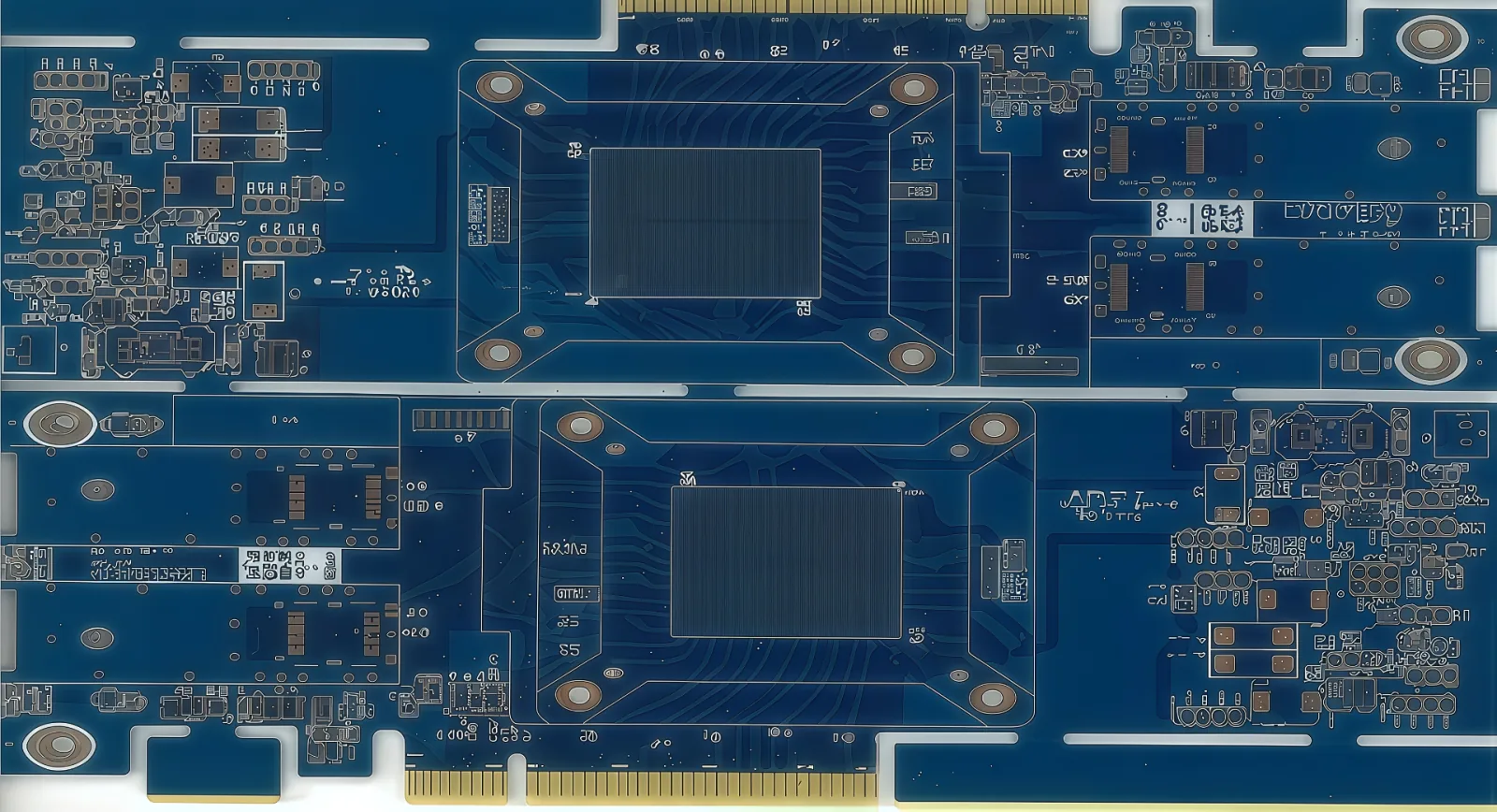

Blue soldermask server module PCB with gold-finger edge connectors and dual BGA cavities

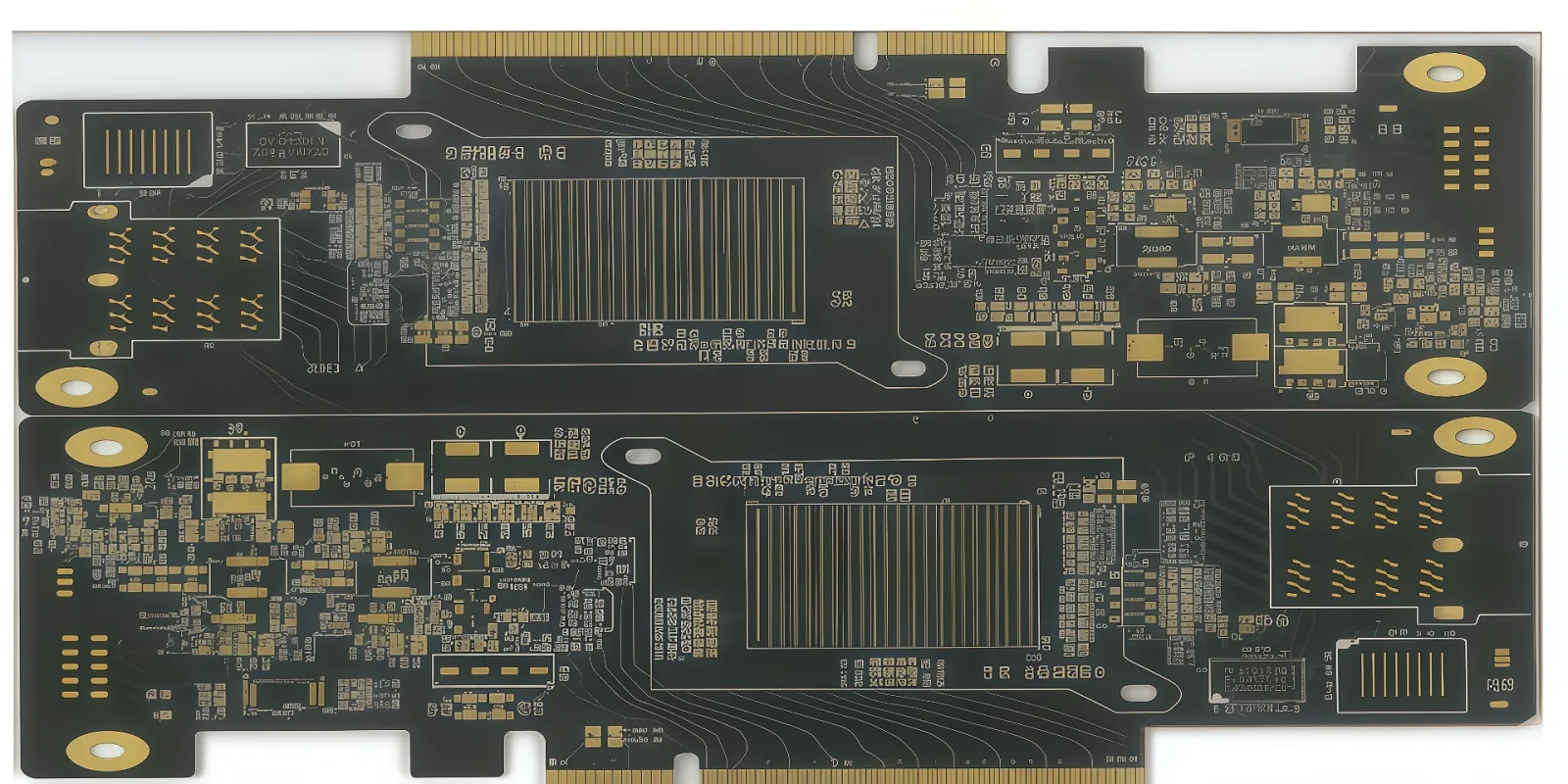

High-density SSD/memory PCB with gold-finger edge connectors and fine-pitch routing

Consumer / Server / Industrial Thick Copper PCBs

Heavy copper (up to 6 oz) PCBs for power electronics, server backplanes, industrial control, and high-current consumer applications.

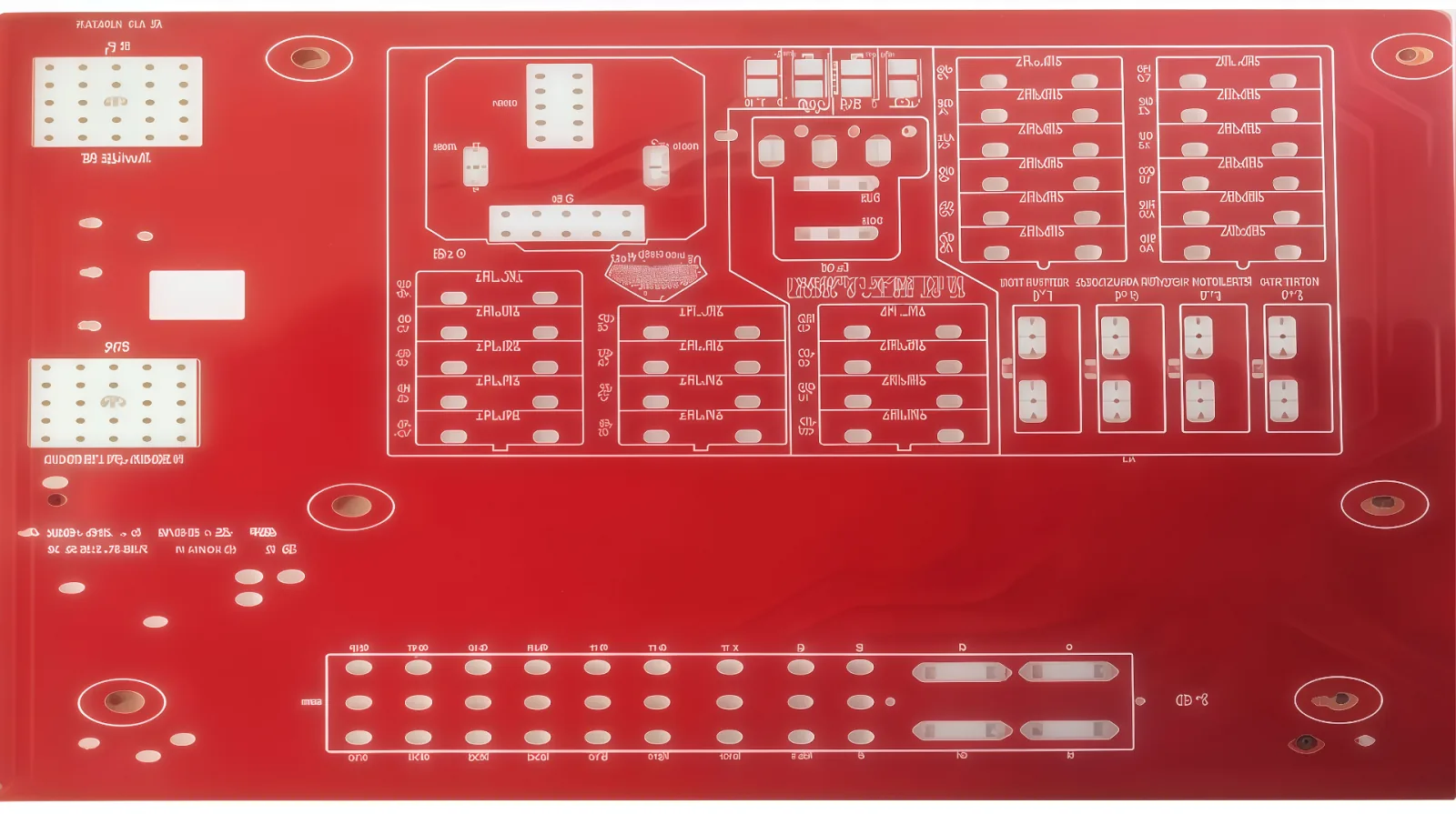

Red soldermask thick copper PCB with high-current power distribution pads and screw terminals

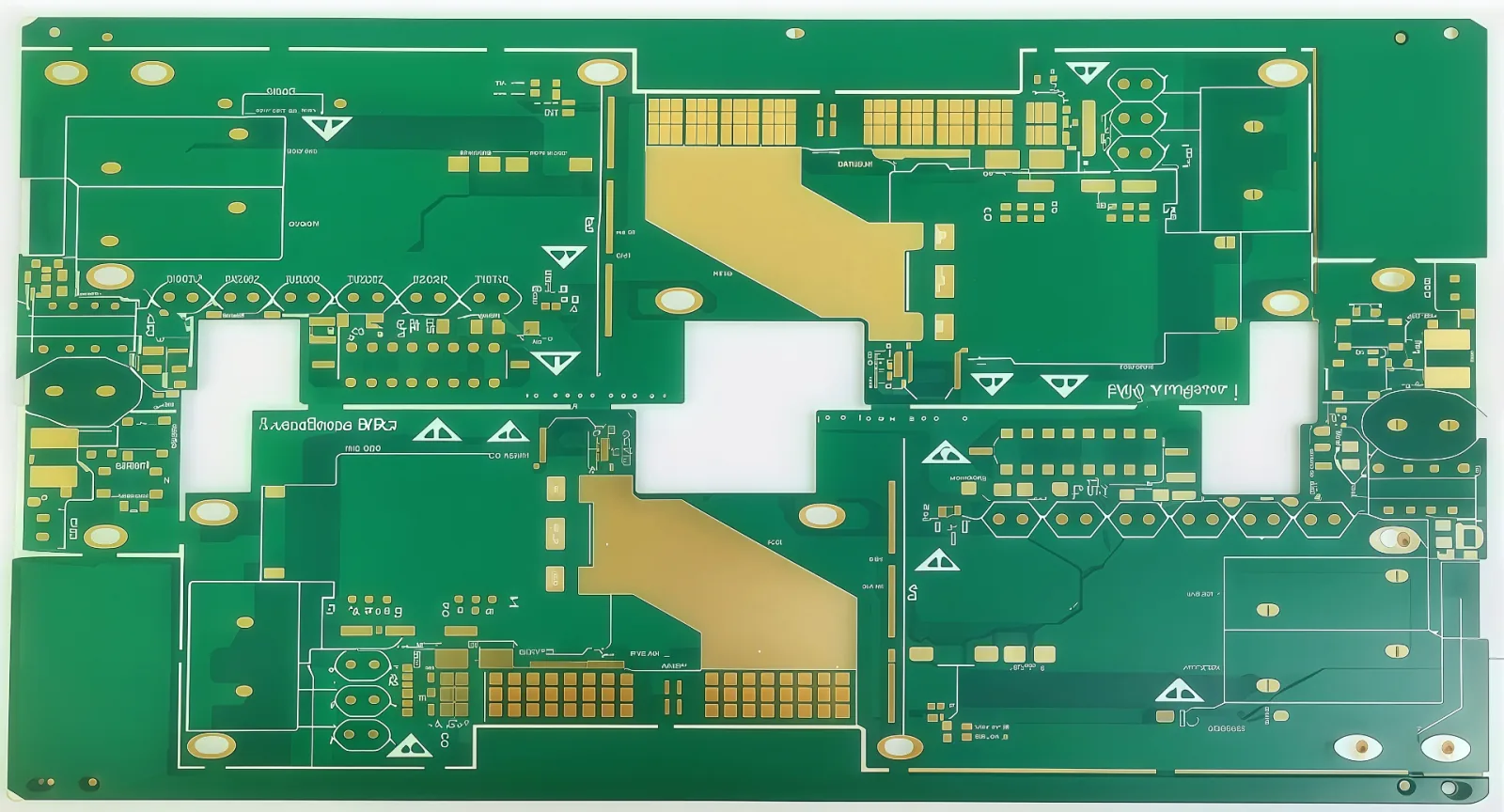

Heavy copper industrial PCB with exposed gold-plated power planes and diagonal bus bars

Blue soldermask server backplane PCB with gold-plated BGA arrays and castellated edges

Heavy copper industrial control PCB with dense copper pads and high-current routing channels
